Modular card for 16 channels of ADAT in/out or HearBus out
This is it – the simplest, most affordable digital solution to get everyone the mix they need to perform their best. This new system platform is completely modular and infinitely expandable, which means it has become the last personal monitoring system you’ll ever need.
Introducing the latest addition to the Hear Technologies family – Hear Back PRO.
With this system, there is no learning curve. Whether or not you’ve ever used a personal monitor mixer, the simple layout of this powerful system makes getting the right mix a quick and effortless experience. Based in Gigabit Ethernet, this framework paves the way for an impressive range of future possibilities.
Allows HB PRO Hub to communicate with pro audio equipment using multi-channel AES/EBU protocol.
Tascam DA-88-style pin-out on a DB25 connector for inputting or outputting 16 channels of digital audio
Jumper settings allow the user to choose whether the card is 16 inputs or 16 outputs
Supports and automatically locks onto sampling rates of 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, and 192kHz

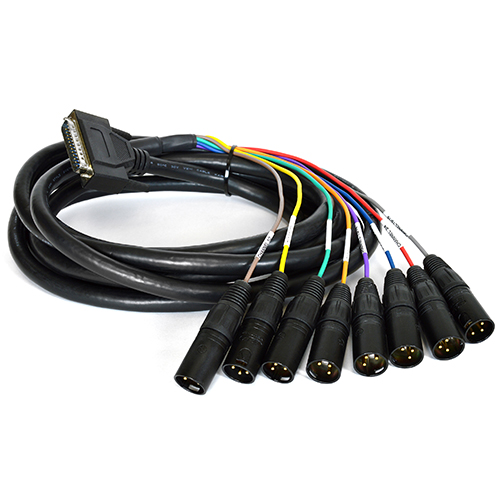

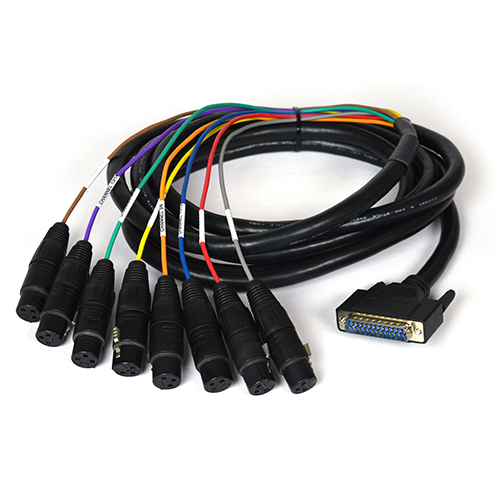

DB25 to (8) XLR (each AES/EBU XLR connector supports 2 channels of digital audio) break-out cable is sold separately, unless the AES/EBU card is purchased as part of the Hear Back PRO Four Pack
(2) cards can be populated per Hub to allow A/B input switching between (2) banks of 16 channels
Up to (4) cards can be populated to allow A/B input switching as well as dedicated AES/EBU outputs
- Input card with Standard DB25 Connector,
- 8 x Balanced Inputs each user-selectable to 0db or -10db input sensitivity, and jumpers for
- 6 x Sample Rates (44.1 kHz to 192 kHz)
This is it – the simplest, most affordable digital solution to get everyone the mix they need to perform their best. This new system platform is completely modular and infinitely expandable, which means it has become the last personal monitoring system you’ll ever need.
Introducing the latest addition to the Hear Technologies family – Hear Back PRO.
With this system, there is no learning curve. Whether or not you’ve ever used a personal monitor mixer, the simple layout of this powerful system makes getting the right mix a quick and effortless experience. Based in Gigabit Ethernet, this framework paves the way for an impressive range of future possibilities.
High Performance CAT5e Patch Cable
Ethernet Cable RJ45 male/male Applications include: Hear Back, DSL, LAN, Voice, Video, and Data.
Meets or exceeds CAT5E specifications. 24 AWG UTP Stranded copper wire. Certified for all Hear Back interconnections. May be used in other applications, whenever CAT5E cables are required.
Allows HB PRO Hub to communicate with any audio equipment using Dante protocol.
Connects 16 channels of simultaneous audio input and output with other Dante-enabled equipment using a standard Ethernet network connection
Supports sampling rates of 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, and 192kHz
(2) cards can be populated per Hub to allow A/B input switching between (2) banks of 16 channels
Up to (4) cards can be populated to allow A/B input switching as well as a second set of dedicated Dante outputs
Extreme Extender Features:
Extend ADAT® Optical cables up to 500 ft
Uses standard CAT5E cables
Does not affect sound quality
Small size, durable construction
Status LED's
The Extreme Extenders were designed to solve ADAT Optical distance limitations. The Extreme Extender ADAT In converts ADAT optical to HearBus CAT5E cable. Using CAT5E the effective length of an ADAT Optical interface can be extended up to 500 feet. This is accomplished without any loss of audio quality. The ADAT "Thru" output provides a buffered pass-thru for connection to local ADAT devices.

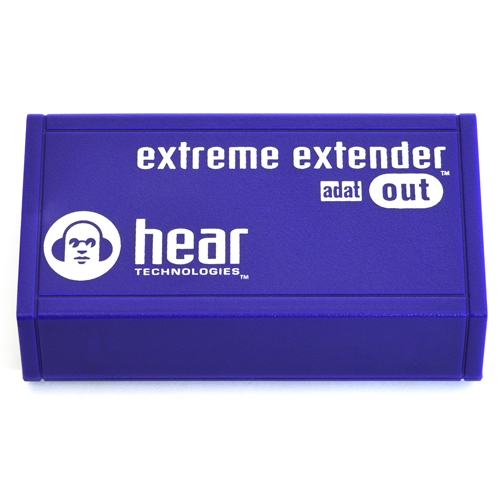

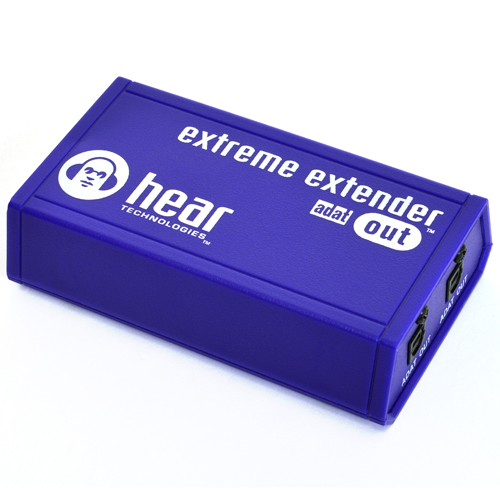

The Extreme Extender ADAT Out converts the CAT5E HearBus back to ADAT optical. Two parallel optical outputs provide drive for two separate ADAT devices. A bi-color clock status LED indicates the presence (green) or absence (red) of the ADAT clock.
In addition to acting as an ADAT optical extender, the Extreme Extender ADAT In may be connected to the Optical output of any ADAT device, such as a DAW, Mixer, etc. and connected to the input of a Hear Back Hub.
The Extreme Extender ADAT Out can be connected to the HearBus out of a hub to obtain two ADAT outputs. The Extreme Extender ADAT In is powered using a small external power supply.
Shipment: 1x Extreme Extender ADAT In
Extreme Extender Features:
Extend ADAT® Optical cables up to 500 ft
Uses standard CAT5E cables
Does not affect sound quality
Small size, durable construction
Status LED's
The Extreme Extenders were designed to solve ADAT Optical distance limitations. The Extreme Extender ADAT In converts ADAT optical to HearBus CAT5E cable. Using CAT5E the effective length of an ADAT Optical interface can be extended up to 500 feet. This is accomplished without any loss of audio quality. The ADAT "Thru" output provides a buffered pass-thru for connection to local ADAT devices.
The Extreme Extender ADAT Out converts the CAT5E HearBus back to ADAT optical. Two parallel optical outputs provide drive for two separate ADAT devices. A bi-color clock status LED indicates the presence (green) or absence (red) of the ADAT clock.
In addition to acting as an ADAT optical extender, the Extreme Extender ADAT In may be connected to the Optical output of any ADAT device, such as a DAW, Mixer, etc. and connected to the input of a Hear Back Hub.
The Extreme Extender ADAT Out can be connected to the HearBus out of a hub to obtain two ADAT outputs. The Extreme Extender ADAT In is powered using a small external power supply.
Shipment: 1x Extreme Extender ADAT Out
The Hear Back Four Pack includes 4 Mixers, 1 Hub, 4 - 50 foot CAT5e cables, and a Hear Back analog DA-88 style cable.
Hear Back Mixer Features:
Local control up to eight channels of audio
Master volume
Built-in DSP limiter
24-bit D/A converters
Less than 1.5 millisecond total system delay
Bus status indicator
Headphone amplifier fault indicator
Link indicators
Standard CAT5E power and signal connection
Balanced line outs, mono/stereo
Stereo AUX in: – Expand numbers of mixers – Drum module/metronome input
Built-in standard threaded mic stand mount
Hear Back Hub Features:
Three switch selectable 8-channel input sources: – ADAT Optical – Analog – HearBus
24-bit A/D converters
Digital inputs: 44.1KHz and 48 KHz sample rates
Less than 1.5 milliseconds system delay
3-LED four-level metering
Standard CAT5E - delivers power and signals to mixers
Daisy-chain for very large systems
Internal universal input power supply
1 RU chassis
High Performance CAT5e Patch Cable (50 foot) Ethernet Cable RJ45 male/male Applications include: Hear Back, DSL, LAN, Voice, Video, and Data.
Meets or exceeds CAT5E specifications. 24 AWG UTP Stranded copper wire. Certified for all Hear Back interconnections. May be used in other applications, whenever CAT5E cables are required.
High Performance DA-88 Style Cable This Hear Back analog cable is a DB-25 male to eight 1/4" TRS phone plugs.
Certified for all Hear Back interconnections. May be used in other applications, whenever DA-88 style cables are required.
Hear Back Hub Features:
Three switch selectable 8-channel input sources: – ADAT Optical – Analog – HearBus
24-bit A/D converters
Digital inputs: 44.1KHz and 48 KHz sample rates
Less than 1.5 milliseconds system delay
3-LED four-level metering
Standard CAT5E - delivers power and signals to mixers
Daisy-chain for very large systems
Internal universal input power supply
1 RU chassis
Hear Back System
A basic Hear Back system consists of a Hub and personal Mixers connected using standard CAT5E cables. A single Hub supplies signal and power to a maximum of eight Mixers. That’s one for you and everybody in the band. If that’s not enough, the Hubs can be daisy-chained using the HearBus In and Out for virtually unlimited system size. The Hear Back Hub can accept analog input signals from audio mixers, auxiliary, matrix, monitor, and/or direct outputs.
The ADAT input can come from digital audio workstations, digital recorders, or digital mixers. For front of house or remotely located digital mixers, we also have the Extreme Extender ADAT In/Out that converts ADAT optical, which has very limited distance, to the HearBus for transmission of up to 500 feet.
Our solution, Hear Back, has several key advantages:
Virtually unlimited system size
Very attractive pricing
Excellent audio fidelity
Built-in DSP Limiter
Very long digital lines possible without loss of audio quality
Audio inputs ADAT, analog, and the HearBus are switch selectable from the front panel.
Local control of up to ten channels of audio (8 inputs plus a stereo Aux input) Master Volume (controls the level to the headphones, line outs and the Aux input to the line outputs)
Built-in DSP Limiter (designed as a “brick wall” limiter for hearing protection and to protect monitor wedges from overload)
Headphone amplifier fault indicator in case of over temperature, or a short, the red LED comes on to alert the user something is a problem.
A second visual trouble shooting aid for the user is the Bus status indicator
Link Indicators – Whenever two pairs of mono inputs are linked for stereo operation the link LED is illuminated
Standard CAT5E power and signal Connection, cost effective, simple, non-obtrusive way to connect eight channels of audio. The Cable is held in place with a “built-in cable strain relief”
Balanced Line-Outs, Mono/Stereo
Stereo AUX In
Built-in Mic Stand Mount may be mounted to a standard mic stand or clipped onto a stand extension bar or clip
High Power – Low Distortion Headphone Amplifiers
One of the industry's most powerful headphone amplifiers

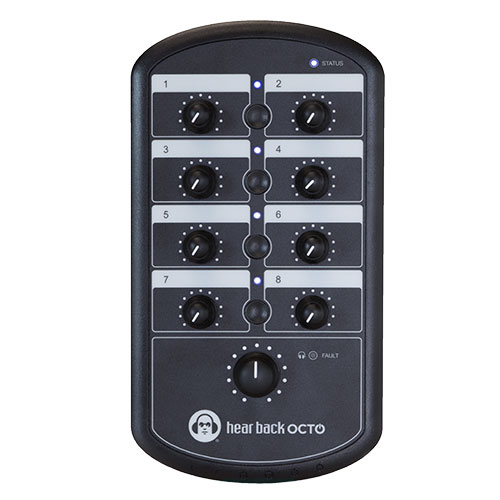

The next evolution of the Hear Back 8-channel personal monitoring system has arrived – introducing Hear Back OCTO.
With improved audio quality, system performance, and overall ease of use, it revolutionizes monitor mixing on stage or in the studio. Imagine getting your mix exactly the way you want it. With the Hear Back OCTO, you save time and get the sound just right, the first time. This affordable system is perfect for headphones, wired and wireless in-ear monitors, and/or conventional floor monitors.
NEW FEATURES
Improved ease of use
Enhanced sound quality
Inspired by Hear Back PRO system
More compact size
Capacitive touch link buttons
Easier labeling with flat-top surface
8 mono channels with up to 4 stereo pairs
100% backwards compatible with the original Hear Back system
Compatible with the Hear Back PRO system via optional PRO Hub ADAT Card
All connectors conveniently located on one end for easy access
Includes 1/8” and 1/4” headphone jacks
Hear Back OCTO Hub Features:
Three switch selectable input sources:
ADAT® Optical
Analog
HearBus
24-bit A/D converters
44.1KHz and 48KHz sample rates
Multi-color, four-level metering
Daisy-chain for expanded systems
Internal universal input power supply
1 RU chassis

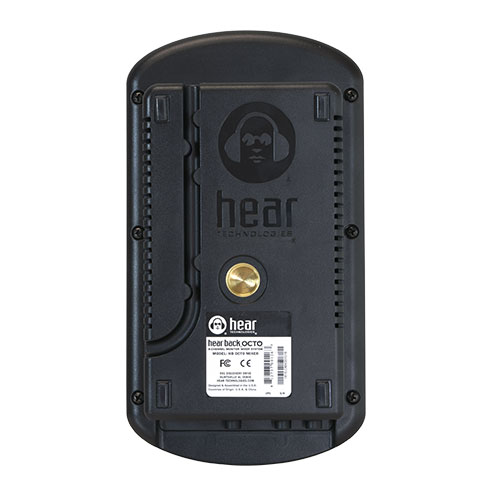

Hear Back OCTO Mixer Features:
Local control up to 10 channels of audio
Master volume
Built-in standard mic stand mount
24-bit D/A converters
Bus status indicator
Headphone amplifier fault indicator
Mono/stereo link indicators
Balanced line outs, mono/stereo
Expand numbers of mixers
Drum module/metronome input
A single Hub supplies signal and power to a maximum of eight Mixers. To expand your system, the Hubs can be daisy-chained using the HearBus In/Out for virtually unlimited system size. The Hub accepts analog input signals from an audio mixer such as auxiliaries, matrix outs, sub outs, monitor outs, and/or direct outputs. The ADAT input can come from digital audio workstations, digital recorders, or digital mixers.
Hear Back OCTO Hub Features:
Three switch selectable input sources:
ADAT® Optical
Analog
HearBus
24-bit A/D converters
44.1KHz and 48KHz sample rates
Multi-color, four-level metering
Daisy-chain for expanded systems
Internal universal input power supply
1 RU chassis
Hear Back OCTO Mixer Features:
Local control up to 10 channels of audio
Master volume
Built-in standard mic stand mount
24-bit D/A converters
Bus status indicator
Headphone amplifier fault indicator
Mono/stereo link indicators
Balanced line outs, mono/stereo
Stereo AUX in:
Expand numbers of mixers
Drum module/metronome input

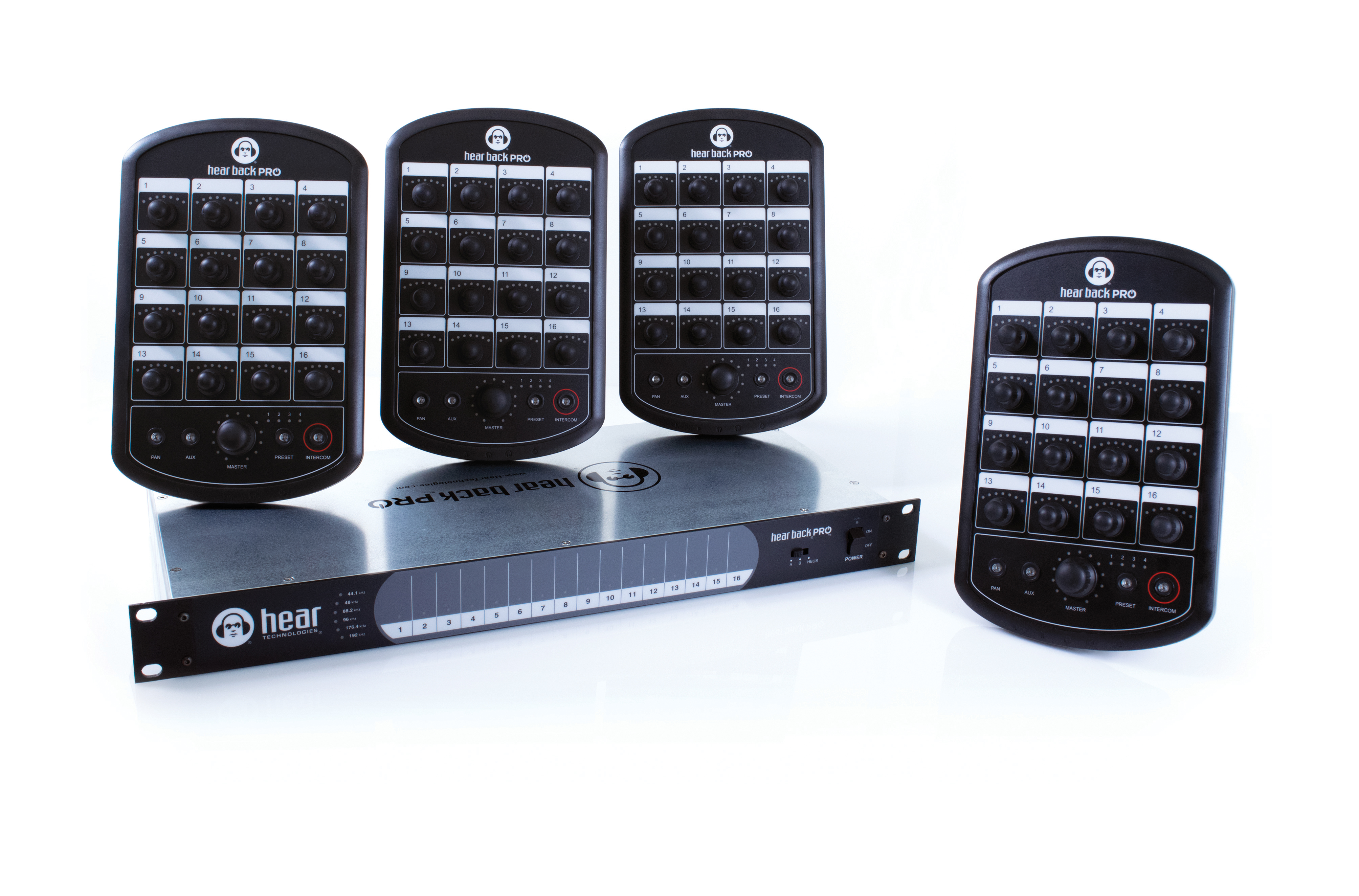

hear back PRO
Includes: (4) PRO Mixers, (1) Hub Frame, (2) Analog cards, (1) Network Card, (4) 50' CAT6, (2) DA-88 cables
This is it – the simplest, most affordable digital solution to get everyone the mix they need to perform their best. This new system platform is completely modular and infinitely expandable, which means it has become the last personal monitoring system you’ll ever need.
Introducing the latest addition to the Hear Technologies family – Hear Back PRO.
With this system, there is no learning curve. Whether or not you’ve ever used a personal monitor mixer, the simple layout of this powerful system makes getting the right mix a quick and effortless experience. Based in Gigabit Ethernet, this framework paves the way for an impressive range of future possibilities.

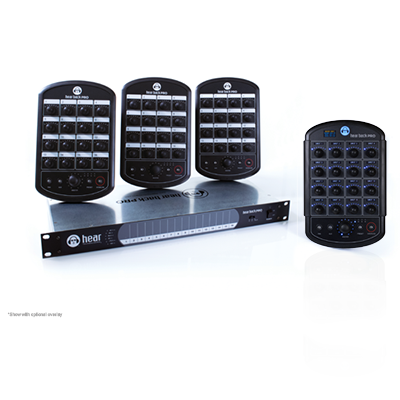

The Hear Back PRO System: Hub & Mixers
The Hear Back PRO system consists of two main components: the Hub and the Mixer. The modular Hub consists of four card slots, which can be populated with any configuration of input and/or output cards to fit your exact needs. Each Hub has the ability to supply signal and power to as many as 32 Mixers (8 per Network Card), each over a single standard CAT5e/6 cable. And with the built-in HBus In/Out ports, multiple Hubs can be daisy-chained together, allowing for truly unlimited system expansion.
The standard Hub (included in the “4-pack”) comes pre-loaded with one Network Card and two 8-channel Analog Input Cards which can accept input signals from an audio mixer via auxiliary, matrix, monitor, and/or direct outputs.
The Hear Back PRO boasts many key advantages, including:
Side-mounted card slot on Mixer for future expansion
Large master knob controls overall main mix, AUX, and intercom levels independently
Volume and panning control of all
16 channels
Direct and immediate visual feedback of all 16 channels
Up to 8 pairs of stereo-linked channels
Support for sampling rates up to 192 kHz
Selectable XLR or 1/8” Mixer AUX input
Built-in intercom broadcasts the AUX source (mic, MP3 player, click, etc.)
Intercom auto adjusts its own level so even the quietest message never goes unheard
Modular I/O Hub card system lets you customize the system to match your configuration, and can adapt to your needs
Supports secondary power supply to provide redundancy and power to up to
32 Mixers
USB port on Hub makes updating firmware for future features and upgrades a simple drag-and-drop operation
Status indicating logos on Hub and Mixers make it easy to detect and diagnose problems, should they arise

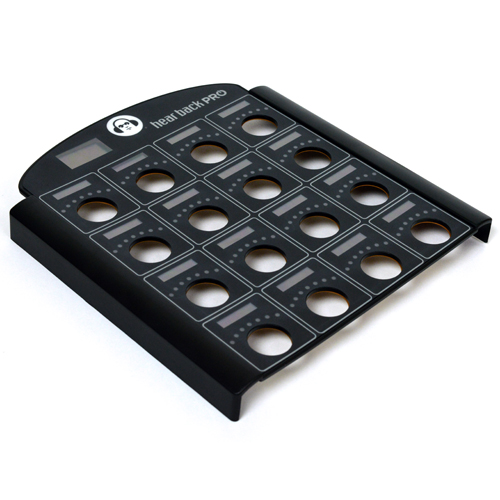

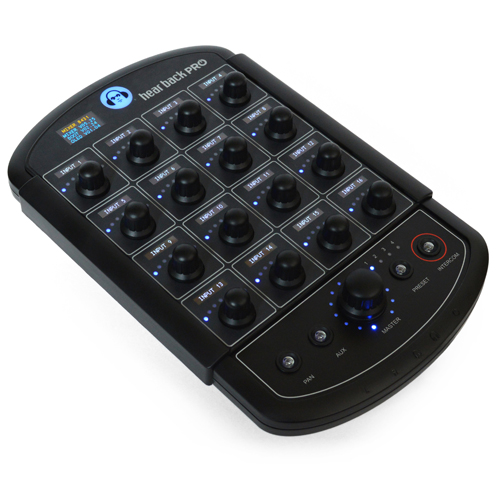

Write session info and channel settings on storable Mixer overlays for an unlimited number of presets
Instantly store and recall presets from memory with the push of a button
Most recent configuration is saved, even after power-down
The Hear Back PRO system is available in a Four Pack as well as offering Mixers and Hubs separately.
Hear Back PRO Hub Features:
Three switch selectable 16-channel input sources: – Input A (Slots 1 & 2) – Input B (Slots 3 & 4) – HBus
24-bit Delta-Sigma A/D converters
Six user-selectable sample rates, indicated by LEDs: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz
Less than .25 milliseconds total system delay (latency) from analog input to output
16 RGB LEDs intuitively display signal / peak levels for channel metering
Daisy-chain via HBus for very large systems
1 RU chassis
Modular I/O card-slot configurable mainframe
Gigabit Ethernet network fabric
48V Power Over Ethernet supply

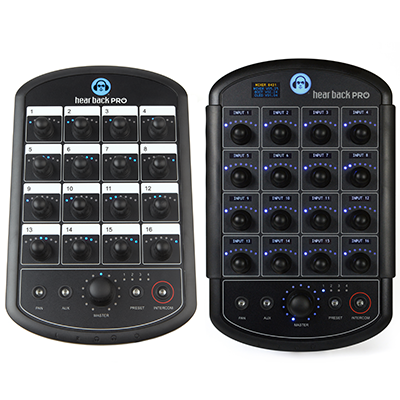

Hear Back PRO Mixer Features:
Local control of up to 18 channels of audio (16 mono channels + AUX IN + Intercom IN)
Receive power and audio over one Ethernet cable, up to 500’ from Hub to each Mixer
24-bit Delta-Sigma D/A and A/D converters
Volume/panning/stereo link control of all 16 channels of audio
Store up to 4 recallable presets
Intercom allows communication to anyone with a Hear Back PRO Mixer
Selectable 1/8” TRS stereo unbalanced and XLR mono balanced (with 15V phantom power) AUX inputs: – Microphone input for crowd / ambiance mic or intercom use – Drum module / metronome or local mix input
1/8” and 1/4” headphone jacks
Balanced mono/stereo, line level outputs
hear back PRO
Includes: (4) PRO Mixers, (1) Hub Frame, (1) ADAT card, (1) Network Card, (4) 50' CAT6
This is it – the simplest, most affordable digital solution to get everyone the mix they need to perform their best. This new system platform is completely modular and infinitely expandable, which means it has become the last personal monitoring system you’ll ever need.
Introducing the latest addition to the Hear Technologies family – Hear Back PRO.
With this system, there is no learning curve. Whether or not you’ve ever used a personal monitor mixer, the simple layout of this powerful system makes getting the right mix a quick and effortless experience. Based in Gigabit Ethernet, this framework paves the way for an impressive range of future possibilities.
The Hear Back PRO System: Hub & Mixers
The Hear Back PRO system consists of two main components: the Hub and the Mixer. The modular Hub consists of four card slots, which can be populated with any configuration of input and/or output cards to fit your exact needs. Each Hub has the ability to supply signal and power to as many as 32 Mixers (8 per Network Card), each over a single standard CAT5e/6 cable. And with the built-in HBus In/Out ports, multiple Hubs can be daisy-chained together, allowing for truly unlimited system expansion.
The standard Hub (included in the “4-pack”) comes pre-loaded with one Network Card and two 8-channel Analog Input Cards which can accept input signals from an audio mixer via auxiliary, matrix, monitor, and/or direct outputs.
The Hear Back PRO boasts many key advantages, including:
Side-mounted card slot on Mixer for future expansion
Large master knob controls overall main mix, AUX, and intercom levels independently
Volume and panning control of all
16 channels
Direct and immediate visual feedback of all 16 channels
Up to 8 pairs of stereo-linked channels
Support for sampling rates up to 192 kHz
Selectable XLR or 1/8” Mixer AUX input
Built-in intercom broadcasts the AUX source (mic, MP3 player, click, etc.)
Intercom auto adjusts its own level so even the quietest message never goes unheard
Modular I/O Hub card system lets you customize the system to match your configuration, and can adapt to your needs
Supports secondary power supply to provide redundancy and power to up to
32 Mixers
USB port on Hub makes updating firmware for future features and upgrades a simple drag-and-drop operation
Status indicating logos on Hub and Mixers make it easy to detect and diagnose problems, should they arise
Write session info and channel settings on storable Mixer overlays for an unlimited number of presets
Instantly store and recall presets from memory with the push of a button
Most recent configuration is saved, even after power-down
The Hear Back PRO system is available in a Four Pack as well as offering Mixers and Hubs separately.
Hear Back PRO Hub Features:
Three switch selectable 16-channel input sources: – Input A (Slots 1 & 2) – Input B (Slots 3 & 4) – HBus
24-bit Delta-Sigma A/D converters
Six user-selectable sample rates, indicated by LEDs: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz
Less than .25 milliseconds total system delay (latency) from analog input to output
16 RGB LEDs intuitively display signal / peak levels for channel metering
Daisy-chain via HBus for very large systems
1 RU chassis
Modular I/O card-slot configurable mainframe
Gigabit Ethernet network fabric
48V Power Over Ethernet supply
Hear Back PRO Mixer Features:
Local control of up to 18 channels of audio (16 mono channels + AUX IN + Intercom IN)
Receive power and audio over one Ethernet cable, up to 500’ from Hub to each Mixer
24-bit Delta-Sigma D/A and A/D converters
Volume/panning/stereo link control of all 16 channels of audio
Store up to 4 recallable presets
Intercom allows communication to anyone with a Hear Back PRO Mixer
Selectable 1/8” TRS stereo unbalanced and XLR mono balanced (with 15V phantom power) AUX inputs: – Microphone input for crowd / ambiance mic or intercom use – Drum module / metronome or local mix input
1/8” and 1/4” headphone jacks
Balanced mono/stereo, line level outputs
hear back PRO
Includes: (4) PRO Mixers, (1) Hub Frame, (1) AES card, (1) Network Card, (4) 50' CAT6
This is it – the simplest, most affordable digital solution to get everyone the mix they need to perform their best. This new system platform is completely modular and infinitely expandable, which means it has become the last personal monitoring system you’ll ever need.
Introducing the latest addition to the Hear Technologies family – Hear Back PRO.
With this system, there is no learning curve. Whether or not you’ve ever used a personal monitor mixer, the simple layout of this powerful system makes getting the right mix a quick and effortless experience. Based in Gigabit Ethernet, this framework paves the way for an impressive range of future possibilities.
The Hear Back PRO System: Hub & Mixers
The Hear Back PRO system consists of two main components: the Hub and the Mixer. The modular Hub consists of four card slots, which can be populated with any configuration of input and/or output cards to fit your exact needs. Each Hub has the ability to supply signal and power to as many as 32 Mixers (8 per Network Card), each over a single standard CAT5e/6 cable. And with the built-in HBus In/Out ports, multiple Hubs can be daisy-chained together, allowing for truly unlimited system expansion.
The standard Hub (included in the “4-pack”) comes pre-loaded with one Network Card and two 8-channel Analog Input Cards which can accept input signals from an audio mixer via auxiliary, matrix, monitor, and/or direct outputs.
The Hear Back PRO boasts many key advantages, including:
Side-mounted card slot on Mixer for future expansion
Large master knob controls overall main mix, AUX, and intercom levels independently
Volume and panning control of all
16 channels
Direct and immediate visual feedback of all 16 channels
Up to 8 pairs of stereo-linked channels
Support for sampling rates up to 192 kHz
Selectable XLR or 1/8” Mixer AUX input
Built-in intercom broadcasts the AUX source (mic, MP3 player, click, etc.)
Intercom auto adjusts its own level so even the quietest message never goes unheard
Modular I/O Hub card system lets you customize the system to match your configuration, and can adapt to your needs
Supports secondary power supply to provide redundancy and power to up to
32 Mixers
USB port on Hub makes updating firmware for future features and upgrades a simple drag-and-drop operation
Status indicating logos on Hub and Mixers make it easy to detect and diagnose problems, should they arise
Write session info and channel settings on storable Mixer overlays for an unlimited number of presets
Instantly store and recall presets from memory with the push of a button
Most recent configuration is saved, even after power-down
The Hear Back PRO system is available in a Four Pack as well as offering Mixers and Hubs separately.
Hear Back PRO Hub Features:
Three switch selectable 16-channel input sources: – Input A (Slots 1 & 2) – Input B (Slots 3 & 4) – HBus
24-bit Delta-Sigma A/D converters
Six user-selectable sample rates, indicated by LEDs: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz
Less than .25 milliseconds total system delay (latency) from analog input to output
16 RGB LEDs intuitively display signal / peak levels for channel metering
Daisy-chain via HBus for very large systems
1 RU chassis
Modular I/O card-slot configurable mainframe
Gigabit Ethernet network fabric
48V Power Over Ethernet supply
Hear Back PRO Mixer Features:
Local control of up to 18 channels of audio (16 mono channels + AUX IN + Intercom IN)
Receive power and audio over one Ethernet cable, up to 500’ from Hub to each Mixer
24-bit Delta-Sigma D/A and A/D converters
Volume/panning/stereo link control of all 16 channels of audio
Store up to 4 recallable presets
Intercom allows communication to anyone with a Hear Back PRO Mixer
Selectable 1/8” TRS stereo unbalanced and XLR mono balanced (with 15V phantom power) AUX inputs: – Microphone input for crowd / ambiance mic or intercom use – Drum module / metronome or local mix input
1/8” and 1/4” headphone jacks
Balanced mono/stereo, line level outputs
hear back PRO
Includes: (4) PRO Mixers, (1) Hub Frame, (1) Dante card, (1) Network Card, (4) 50' CAT6
This is it – the simplest, most affordable digital solution to get everyone the mix they need to perform their best. This new system platform is completely modular and infinitely expandable, which means it has become the last personal monitoring system you’ll ever need.
Introducing the latest addition to the Hear Technologies family – Hear Back PRO.
With this system, there is no learning curve. Whether or not you’ve ever used a personal monitor mixer, the simple layout of this powerful system makes getting the right mix a quick and effortless experience. Based in Gigabit Ethernet, this framework paves the way for an impressive range of future possibilities.
The Hear Back PRO System: Hub & Mixers
The Hear Back PRO system consists of two main components: the Hub and the Mixer. The modular Hub consists of four card slots, which can be populated with any configuration of input and/or output cards to fit your exact needs. Each Hub has the ability to supply signal and power to as many as 32 Mixers (8 per Network Card), each over a single standard CAT5e/6 cable. And with the built-in HBus In/Out ports, multiple Hubs can be daisy-chained together, allowing for truly unlimited system expansion.
The standard Hub (included in the “4-pack”) comes pre-loaded with one Network Card and two 8-channel Analog Input Cards which can accept input signals from an audio mixer via auxiliary, matrix, monitor, and/or direct outputs.
The Hear Back PRO boasts many key advantages, including:
Side-mounted card slot on Mixer for future expansion
Large master knob controls overall main mix, AUX, and intercom levels independently
Volume and panning control of all
16 channels
Direct and immediate visual feedback of all 16 channels
Up to 8 pairs of stereo-linked channels
Support for sampling rates up to 192 kHz
Selectable XLR or 1/8” Mixer AUX input
Built-in intercom broadcasts the AUX source (mic, MP3 player, click, etc.)
Intercom auto adjusts its own level so even the quietest message never goes unheard
Modular I/O Hub card system lets you customize the system to match your configuration, and can adapt to your needs
Supports secondary power supply to provide redundancy and power to up to
32 Mixers
USB port on Hub makes updating firmware for future features and upgrades a simple drag-and-drop operation
Status indicating logos on Hub and Mixers make it easy to detect and diagnose problems, should they arise
Write session info and channel settings on storable Mixer overlays for an unlimited number of presets
Instantly store and recall presets from memory with the push of a button
Most recent configuration is saved, even after power-down
The Hear Back PRO system is available in a Four Pack as well as offering Mixers and Hubs separately.
Hear Back PRO Hub Features:
Three switch selectable 16-channel input sources: – Input A (Slots 1 & 2) – Input B (Slots 3 & 4) – HBus
24-bit Delta-Sigma A/D converters
Six user-selectable sample rates, indicated by LEDs: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz
Less than .25 milliseconds total system delay (latency) from analog input to output
16 RGB LEDs intuitively display signal / peak levels for channel metering
Daisy-chain via HBus for very large systems
1 RU chassis
Modular I/O card-slot configurable mainframe
Gigabit Ethernet network fabric
48V Power Over Ethernet supply
Hear Back PRO Mixer Features:
Local control of up to 18 channels of audio (16 mono channels + AUX IN + Intercom IN)
Receive power and audio over one Ethernet cable, up to 500’ from Hub to each Mixer
24-bit Delta-Sigma D/A and A/D converters
Volume/panning/stereo link control of all 16 channels of audio
Store up to 4 recallable presets
Intercom allows communication to anyone with a Hear Back PRO Mixer
Selectable 1/8” TRS stereo unbalanced and XLR mono balanced (with 15V phantom power) AUX inputs: – Microphone input for crowd / ambiance mic or intercom use – Drum module / metronome or local mix input
1/8” and 1/4” headphone jacks
Balanced mono/stereo, line level outputs
hear back PRO
Includes: (4) PRO Mixers, (1) Hub Frame, (1) Waves card, (1) Network Card, (4) 50' CAT6
This is it – the simplest, most affordable digital solution to get everyone the mix they need to perform their best. This new system platform is completely modular and infinitely expandable, which means it has become the last personal monitoring system you’ll ever need.
Introducing the latest addition to the Hear Technologies family – Hear Back PRO.
With this system, there is no learning curve. Whether or not you’ve ever used a personal monitor mixer, the simple layout of this powerful system makes getting the right mix a quick and effortless experience. Based in Gigabit Ethernet, this framework paves the way for an impressive range of future possibilities.
The Hear Back PRO System: Hub & Mixers
The Hear Back PRO system consists of two main components: the Hub and the Mixer. The modular Hub consists of four card slots, which can be populated with any configuration of input and/or output cards to fit your exact needs. Each Hub has the ability to supply signal and power to as many as 32 Mixers (8 per Network Card), each over a single standard CAT5e/6 cable. And with the built-in HBus In/Out ports, multiple Hubs can be daisy-chained together, allowing for truly unlimited system expansion.
The standard Hub (included in the “4-pack”) comes pre-loaded with one Network Card and two 8-channel Analog Input Cards which can accept input signals from an audio mixer via auxiliary, matrix, monitor, and/or direct outputs.
The Hear Back PRO boasts many key advantages, including:
Side-mounted card slot on Mixer for future expansion
Large master knob controls overall main mix, AUX, and intercom levels independently
Volume and panning control of all
16 channels
Direct and immediate visual feedback of all 16 channels
Up to 8 pairs of stereo-linked channels
Support for sampling rates up to 192 kHz
Selectable XLR or 1/8” Mixer AUX input
Built-in intercom broadcasts the AUX source (mic, MP3 player, click, etc.)
Intercom auto adjusts its own level so even the quietest message never goes unheard
Modular I/O Hub card system lets you customize the system to match your configuration, and can adapt to your needs
Supports secondary power supply to provide redundancy and power to up to
32 Mixers
USB port on Hub makes updating firmware for future features and upgrades a simple drag-and-drop operation
Status indicating logos on Hub and Mixers make it easy to detect and diagnose problems, should they arise
Write session info and channel settings on storable Mixer overlays for an unlimited number of presets
Instantly store and recall presets from memory with the push of a button
Most recent configuration is saved, even after power-down
The Hear Back PRO system is available in a Four Pack as well as offering Mixers and Hubs separately.
Hear Back PRO Hub Features:
Three switch selectable 16-channel input sources: – Input A (Slots 1 & 2) – Input B (Slots 3 & 4) – HBus
24-bit Delta-Sigma A/D converters
Six user-selectable sample rates, indicated by LEDs: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz
Less than .25 milliseconds total system delay (latency) from analog input to output
16 RGB LEDs intuitively display signal / peak levels for channel metering
Daisy-chain via HBus for very large systems
1 RU chassis
Modular I/O card-slot configurable mainframe
Gigabit Ethernet network fabric
48V Power Over Ethernet supply
Hear Back PRO Mixer Features:
Local control of up to 18 channels of audio (16 mono channels + AUX IN + Intercom IN)
Receive power and audio over one Ethernet cable, up to 500’ from Hub to each Mixer
24-bit Delta-Sigma D/A and A/D converters
Volume/panning/stereo link control of all 16 channels of audio
Store up to 4 recallable presets
Intercom allows communication to anyone with a Hear Back PRO Mixer
Selectable 1/8” TRS stereo unbalanced and XLR mono balanced (with 15V phantom power) AUX inputs: – Microphone input for crowd / ambiance mic or intercom use – Drum module / metronome or local mix input
1/8” and 1/4” headphone jacks
Balanced mono/stereo, line level outputs
Introducing the latest addition to the Hear Technologies family – Hear Back PRO.
With this system, there is no learning curve. Whether or not you’ve ever used a personal monitor mixer, the simple layout of this powerful system makes getting the right mix a quick and effortless experience. Based in Gigabit Ethernet, this framework paves the way for an impressive range of future possibilities.
Hear Back PRO Hub Mainframe Features:
Three switch selectable 16-channel input sources: – Input A (Slots 1 & 2) – Input B (Slots 3 & 4) – HBus
24-bit Delta-Sigma A/D converters
Six user-selectable sample rates, indicated by LEDs: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz
Less than .25 milliseconds total system delay (latency) from analog input to output
16 RGB LEDs intuitively display signal / peak levels for channel metering
Standard CAT5e/6 cabling delivers power and signals to Mixers
Daisy-chain via HBus for very large systems
1 RU chassis
Modular I/O card-slot configurable mainframe
Gigabit Ethernet network fabric
48V Power Over Ethernet supply
the Mainframe includes:
- 1x Hub Frame, loaded with
- 1x Mezzanine Board,
- 1x Hub Main Board,
- 1x External Power Supply
This is it – the simplest, most affordable digital solution to get everyone the mix they need to perform their best. This new system platform is completely modular and infinitely expandable, which means it has become the last personal monitoring system you’ll ever need.
This is it – the simplest, most affordable digital solution to get everyone the mix they need to perform their best. This new system platform is completely modular and infinitely expandable, which means it has become the last personal monitoring system you’ll ever need.
Introducing the latest addition to the Hear Technologies family – Hear Back PRO.
With this system, there is no learning curve. Whether or not you’ve ever used a personal monitor mixer, the simple layout of this powerful system makes getting the right mix a quick and effortless experience. Based in Gigabit Ethernet, this framework paves the way for an impressive range of future possibilities.
Local control of up to 18 channels of audio (16 mono channels + AUX IN + Intercom IN)
Simple user interface – no display screens, menus, learning curve, or firmware layers to navigate. Just turn a knob!
True panning/ channel link functions
Store up to 4 recallable presets
Intercom allows communication to anyone with a Hear Back PRO Mixer
Aux inputs (selectable mic and line)
Balanced left/right line outputs
Less than .25msec Latency from analog input to output
Standard CAT5e/6 cabling delivers power and signals to Mixers
Intuitive Hub channel LED display
Modular hub with four user-configurable card slots
Sample Rate user-selectable from 44.1 kHz to 192 kHz
Switch selectable input sources from Input A (Slots 1 & 2), Input B (Slots 3 & 4), or HBus
Gigabit Ethernet fabric, 48v PoE power
Hearbuds and Headset Features:
Better sound quality at lower volumes
Can be used on stage and in the studio
Great for hear back, MP3 players, cell-phones, and other personal audio
Hearbuds alone fit most in-ear headsets
Works great in noisy environments because they block unwanted sounds
Comfortable, safe, and secure
Designed by audiologists
Washable
An affordable in-ear monitor headset that delivers professional performance at a great value. By creating acoustic chambers at the ear, hearbuds not only dramatically improves the sound of standard in-ear headphones and ear-pieces, their molded, 100% silicon, design also significantly reduces unwanted background noises levels – enabling you to enjoy the same sound clarity at lower volumes. And, because they’re audiologically designed, they’re comfortable to wear and won’t fall out of your ears either!
Packaging: Hearbuds, Case back, Hearbud Headset Monitor
Mix Back Mixer
The Mix Back is a flexible and affordable 16 x 12 x 2 x 2 monitor mixer that features two stereo outputs and twelve mono outputs. There are sixteen high quality Mic/Line inputs with passive split. It also features two HearBus outputs and two ADAT optical outputs. A perfect companion to our Hear Back personal monitor system. A talkback mic preamp permits talking to any mono output, master outputs and the intercom output.
Included is a UV LED gooseneck lamp that makes the knob pointers and silkscreen on the front of Mix Back glow-in-the-dark!
Input Channel Features:
16 quality Mic/Line inputs with passive XLR split
Pin 1 lift and Mic phantom power switches
Channel inserts
Signal/Clip LED indicator
100 Hz high-pass filter
Gain control
4 band EQ with separate controls for sweep and cut/boost on mid bands
Two stereo level and pan controls (ST1 and ST2)
Twelve mono level controls (1-12)
Switch selectable effects 1-2 sends
Master Features:
2 stereo and 12 mono TRS outputs
Switch selectable meter/headphone monitoring
2 stereo TRS balanced effect returns
Switch assignable FX1/FX2 returns to the 12 mono masters
Stereo Aux return with level controls to both stereo busses – great for FOH mix or the studio “two mix”
Buss inputs permit stacking of multiple mixers
Talk back mic preamp assignable to stereo masters 1 and 2, mono outputs 1-12, and the balanced Intercom/slate output
Relay contact when the talk back intercom switch is pressed
16 button talkback remote connects using standard CAT5e cable
16 channels of ADAT and HearBus output
Other Features:
Universal internationally approved internal power supply
11 RU chassis
All analog inputs and outputs are balanced
With the Remote Control, the talkback mic preamp is assignable to stereo masters 1 and 2, mono outputs 1 - 12, and the balanced intercom/slate output. Connects up to 500 feet with a standard CAT5e cable. FOR USE WITH MIX BACK (MB) ONLY.
149,00 €*
Diese Website verwendet Cookies, um eine bestmögliche Erfahrung bieten zu können. Mehr Informationen ...
